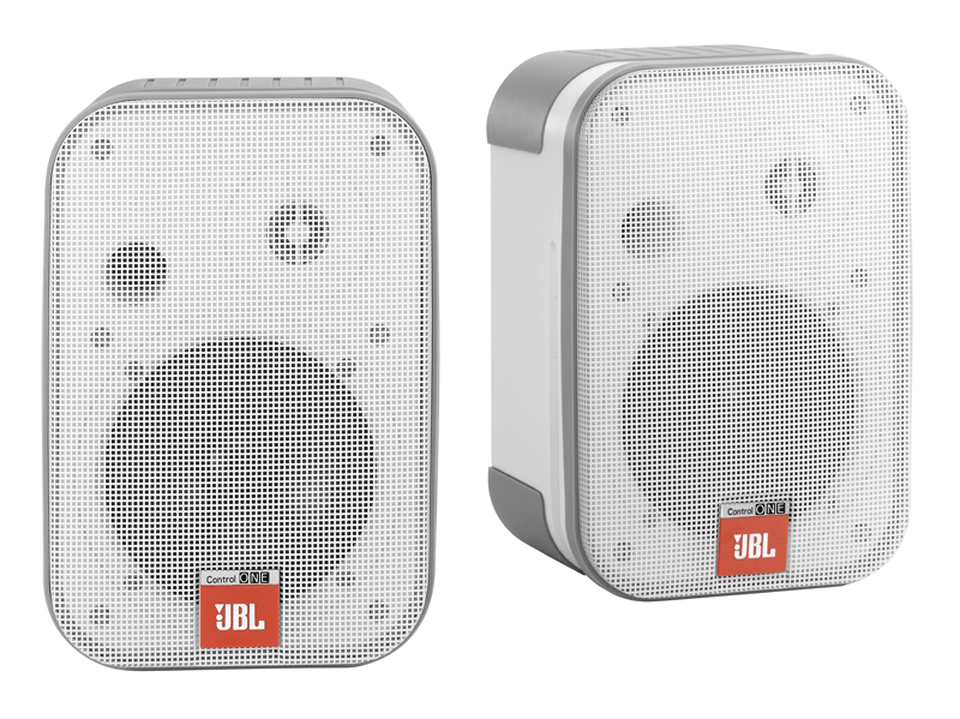

CONTROL 1

4 inch 2-Way Bookshelf

Sold from 2008 until now

Predecessor Product:	CONTROL 1X
Made in:	China

Quick Start Guide & Downloads

Manuals

Owners Manual (English) 341.22 KB

Other

DIY Troubleshooting (English) 308.72 KB

Product Specifications

General Specifications

Recommended Amplifier Power (RMS): 10 Watts – 80 Watts

Nominal Impedance: 4 ohms

Sensitivity (2.83 volts @ 1 meter): 89dB

Frequency Response: 80Hz – 20kHz

High-Frequency Transducer (Tweeter): .5 inch (13mm) Titanium-laminate dome, shielded

Low-Frequency Transducer (Woofer): 4 inch, Shielded

Dimensions

Weight: 5.2 lb (2.4kg)

Dimensions (H x W x D): 9 inch x 6-1/16 inch x 5-7/16 inch (228mm x 155mm 139mm)

These speakers bring world-famous JBL sound anywhere you need it. The rugged enclosures are only 9 inch x 6 inch x 5-1/2 inch (HxWxD), so they won't take up much room on a desk or kitchen counter. And if you don't have shelf space, use the included wall-mount brackets to mount them safely out of the way.
