Product Specifications
- Sensitivity (2.83 volts @ 1 meter)
- 88dB
- Low-Frequency Transducer (Woofer)
- 6-1/2 inch Titanium-laminate cone with rubber surround
- High-Frequency Transducer (Tweeter)
- 1 inch (25mm) Titanium-laminate dome with swivel mount
- Recommended Amplifier Power (RMS)
- 80 Watts
- Frequency Response
- 40Hz – 20kHz (-10dB)
- Crossover Frequency(ies)
- 2.6kHz
- MSRP U.S.
- $299.95 per pair
- Plate Size (Diameter)
- 9-3/16 inch (233mm)
- Mounting Depth
- 4-1/4 inch (108mm)
- Cutout Dimensions
- 7-7/8 inch (200mm)

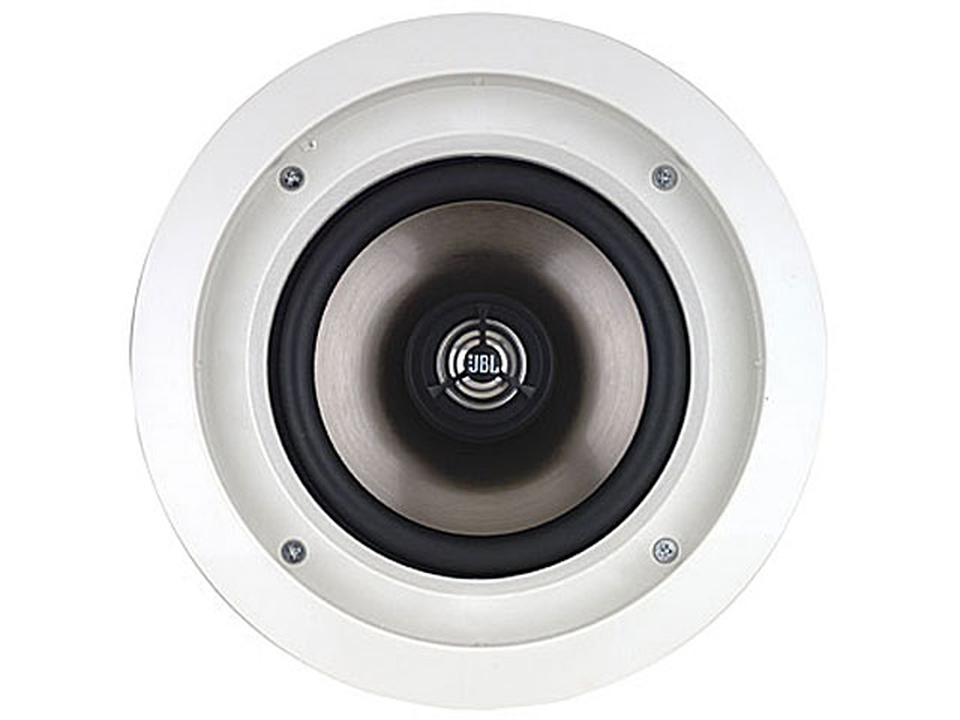

This 2-way in-ceiling loudspeaker delivers powerful, clear JBL sound in a spacesaving package. The Titanium-laminate cone woofer with rubber surround delivers tight bass for extended listening sessions. Includes integrated dog-ear brackets for retrofit applications. Optional snap-together rough-in frames (RIF6C) available separately for new construction.
