STUDIO LS 326W

STUDIO LS 326W

2-Way 6-1/2 inch In-Wall Speaker

Sold from 2007 until now

Made in: China

Documents & Downloads

Product Specifications

Series
Studio L In-Wall/In-Ceiling
MSRP U.S.
$449.95 each
Sensitivity
(2.83V@1m) 89dB
Nominal Impedance
8 ohms
Maximum Recommended Amplifier Power
135W
Frequency Response
30Hz – 30kHz
External Height (in)
11
External Width (in)
8-1/2
Mounting Depth (mm)
90
Weight (kg)
1.6
Mounting Cutout Height (mm)
241
Mounting Cutout Width (mm)
178
Weight (lb)
3.5
Mounting Cutout Height (in)
9-1/2
Mounting Cutout Width (in)
7
External Height (mm)
280
External Width (mm)
216
Mounting Depth (in)
3-9/16
High-Frequency Transducer
1" (25mm)
Low-Frequency Transducer
6-1/2" (165mm)

Great JBL sound anywhere in the room.

The LS326W a 2-way in-wall speaker for use in a wide variety of applications, from stereo and whole-house music systems to complete home theaters. The LS326W features an aluminum woofer and pure-titanium tweeter to deliver accurate performance with dramatically reduced distortion for incredibly realistic sound. The LS326W also incorporates JBL's proprietary EOS waveguide to ensure smooth distribution of sound throughout the listening area. The boundary compensation and tweeter level controls allow for optimum performance in any room and installation location. The white grilles and frames are paintable and allow the speakers to blend into any decor.

JBL engineers designed the LS326W in-wall loudspeaker to produce thrilling, full-range sound from an AVR (audio/video receiver) or amplifier capable of delivering up to 135 watts of power.
Realistic reproduction of music requires clean, undistorted low frequencies. JBL LS326W in-wall loudspeakers feature a 6-1/2-inch (165-millimeter) aluminum cone that not only delivers deep, room-filling bass with low distortion but also anchors an extended frequency response. The result is enveloping, satisfying audio reproduction from the bottom up.
The LS326W’s thin but rigid 1-inch (25-millimeter) titanium tweeter delivers accurate, clear high-frequency response, even at high volume levels. An independent level control lets you optimize its high-frequency performance.
Forget about “sweet spots.” With proprietary JBL Elliptical Oblate Spheroidal (EOS) waveguide technology, your whole room becomes a perfect listening position. Originally designed for JBL Professional LSR studio monitors, the LS326W in-wall loudspeaker’s EOS waveguide distributes sound evenly throughout your playback area.
With a mounting depth of just 3-9/16 inches (90 millimeters) and a weight of only 3.5 pounds (1.6 kilograms), the lightweight, space-saving LS326W loudspeakers offer maximum installation flexibility. A cutting template and integrated dog-ear brackets accommodate retrofit applications, while rough-in frames are available for new construction.
LS326Ws offer outstanding performance, but that doesn’t mean that they have to stand out in a room! You can paint the frames and grilles so that the loudspeakers match your wall décor. You’ll hardly notice your LS326Ws – until you turn them on.

Images & Videos

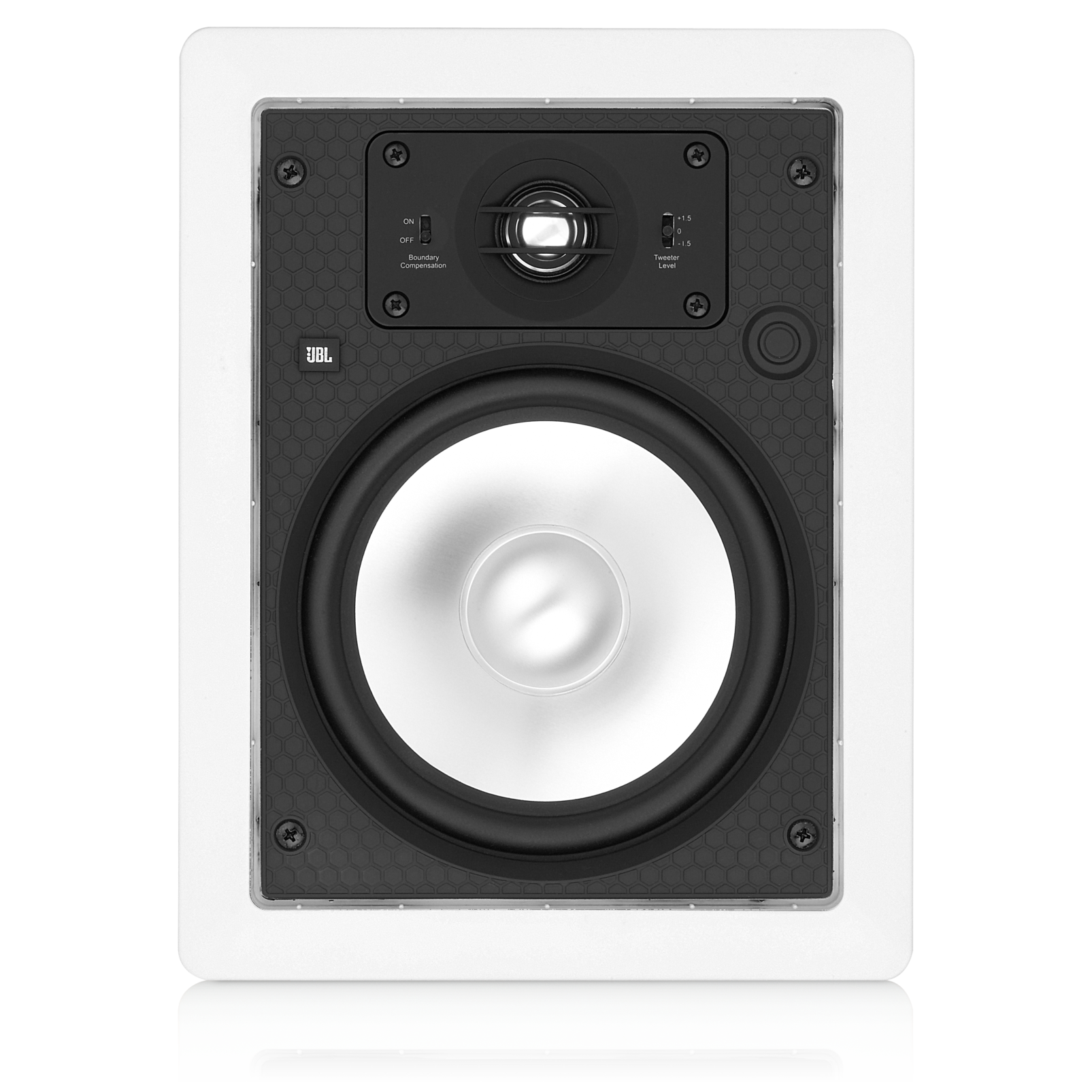

STUDIO LS 326W - Black - 2-Way 6-1/2 inch In-Wall Speaker - Hero
