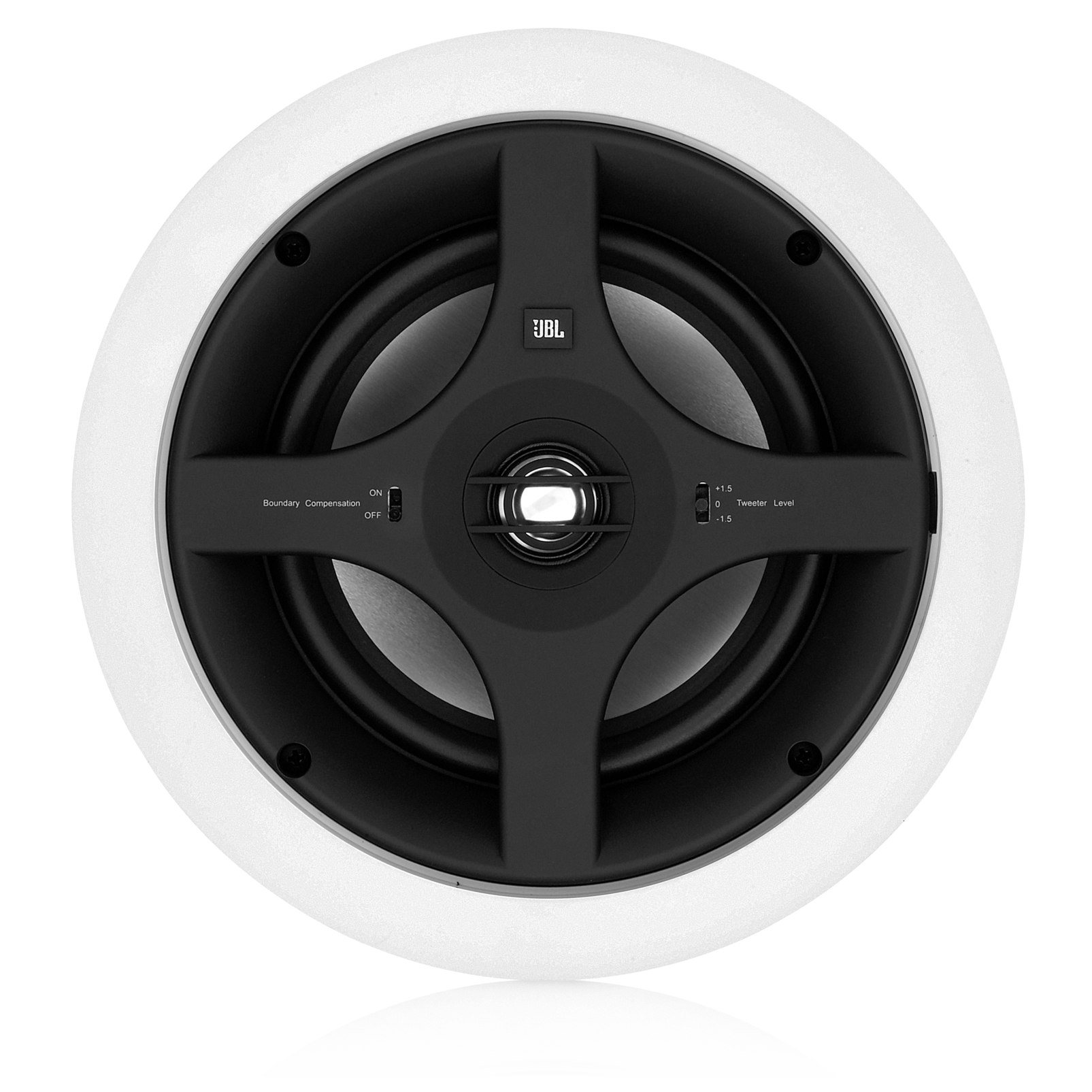

STUDIO LS 326C

STUDIO LS 326C

2-Way 6-1/2 inch Round In-Ceiling Speaker

Sold from 2007 until now

Made in: China

Documents & Downloads

Product Specifications

Series
Studio L In-Wall/In-Ceiling
MSRP U.S.
$399.95 each
Sensitivity
(2.83V@1m) 89dB
Nominal Impedance
8 ohms
Maximum Recommended Amplifier Power
135W
Frequency Response
30Hz – 30kHz
Weight (lb)
3.5
External Width (mm)
233
Mounting Cutout Width (mm)
200
Mounting Depth (in)
4-1/8
Weight (kg)
1.6
Mounting Depth (mm)
104
External Height (mm)
233
External Width (in)
9-3/16
Mounting Cutout Width (in)
7-7/8
Mounting Cutout Height (in)
7-7/8
External Height (in)
9-3/16
Mounting Cutout Height (mm)
200
Low-Frequency Transducer
6-1/2" (165mm)
High-Frequency Transducer
1" (25mm)

Powerful bass, accurate highs – and JBL expertise.

The LS326C a 2-way in-ceiling speaker for use in a wide variety of applications, from stereo and whole-house music systems to complete home theaters. The LS326C features an aluminum woofer and pure-titanium tweeter to deliver accurate performance with dramatically reduced distortion for incredibly realistic sound. The LS326C also incorporates JBL's proprietary EOS waveguide to ensure smooth distribution of sound throughout the listening area. The boundary compensation and tweeter level controls allow for optimum performance in any room and installation location. The white grilles and frames are paintable and allow the speakers to blend into any decor.

JBL engineers designed the LS326C in-ceiling loudspeaker to produce thrilling, full-range sound from an AVR (audio/video receiver) or amplifier capable of delivering up to 135 watts of power.
Realistic reproduction of music requires clean, undistorted low frequencies. The JBL LS326C in-ceiling loudspeaker features a 6-1/2-inch (165-millimeter) aluminum woofer cone that not only delivers deep, room-filling bass with reduced distortion but also anchors an extended frequency response. The result is enveloping, satisfying audio reproduction from the bottom up.
The LS326C in-ceiling loudspeaker’s thin but rigid 1-inch (25-millimeter) titanium tweeter delivers accurate, clear high-frequency response, even at high volume levels. An independent level control lets you optimize the tweeter’s performance.
Forget about “sweet spots.” With proprietary JBL Elliptical Oblate Spheroidal™ (EOS) waveguide technology, your whole room becomes a perfect listening position. Originally designed for JBL Professional LSR studio monitors, the LS326C in-ceiling loudspeaker’s EOS waveguide distributes sound evenly throughout the playback area.
With a mounting depth of just 4-1/8 inches (104 millimeters) and weighing only 3.5 pounds (1.6 kilograms), the lightweight, space-saving LS326C in-ceiling loudspeaker offers maximum installation flexibility. A cutting template and integrated dog-ear brackets accommodate retrofit applications, while rough-in frames are available for new construction. A boundary-compensation switch and independent tweeter-level controls let you further tailor the sound.
The JBL LS326C in-ceiling loudspeakers offer outstanding performance, but that doesn’t mean that they have to stand out in a room! You can paint the frames and grilles so that the loudspeakers match your ceiling color and décor. You’ll hardly notice the LS326Cs – until you turn them on.
