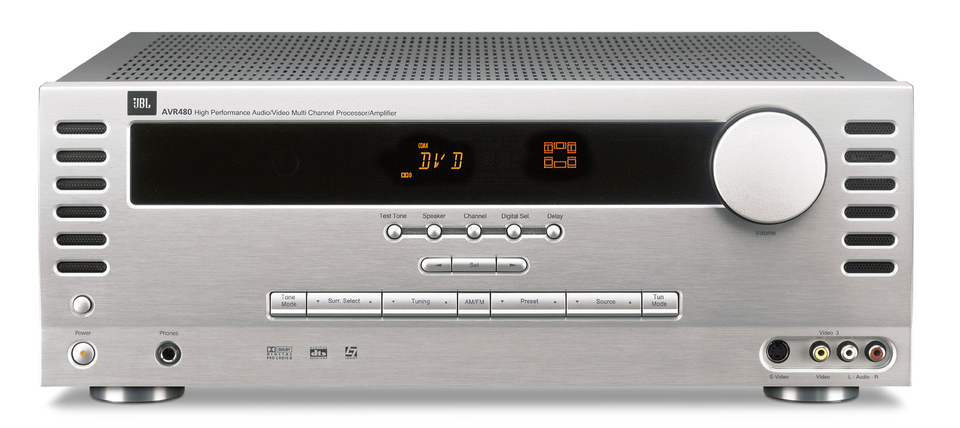

AVR 480
5.1-Channel High-Performance Audio/Video Processor/Amplifier
Vendido desde 2004 hasta ahora
Documentos y descargas
Especificaciones del producto
- Power Requirements
- AC 220 – 240V/50Hz
- Power Consumption
- 72W idle, 580W maximum (5 channels driven)
- Amplifier Power (RMS)
- Front Channels... 100W + 100W (6 ohms/EIAJ)
- Amplifier Power (RMS)
- Front Channels... 75W + 75W (8 ohms/20Hz – 20kHz, 0.08% THD)
- Amplifier Power (RMS)
- CENTER... 100W (6 ohms/EIAJ)
- Amplifier Power (RMS)
- CENTER... 75W (8 ohms/20Hz – 20kHz, 0.08% THD)
- Amplifier Power (RMS)
- SURROUND CHANNELS... 100W + 100W (6 ohms/EIAJ)
- Amplifier Power (RMS)
- SURROUND CHANNELS... 75W + 75W (8 ohms/20Hz – 20kHz, 0.08% THD)
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 90dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Analog Decoding (Dolby Pro Logic, etc.)
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 65kHz (+0/-3dB @ 1 watt)
- High Instantaneous Current Capability (HCC)
- ± 25 Amps
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Weight
- 11kg (24.2 lb)
- Dimensions (H x W x D)
- 168mm x 440mm x 435mm (6.6 inch x 17.3 inch x 17.1 inch)
- Video Formats
- PAL/NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response
- 10Hz – 8MHz (-3dB)
- Frequency Range
- AM... 522 – 1620kHz
- Frequency Range
- FM... 87.5 – 108.0MHz
- China, Singapore
- FM... 0.05MHz
- Korea
- FM... 0.1MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- AM... Loop... 500 µV
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Distortion
- AM... 1kHz, 50% Mod...0.8%
- Signal-to-Noise Ratio
- FM... 70/65 dBA (DIN, 60 dBµV) (Mono/Stereo)
- Distortion (Mono/Stereo)
- FM... 0.15/0.3%
- Selectivity
- AM... ± 9kHz, 30dB
- Stereo Separation
- FM... 35dB @ 1kHz
- Selectivity
- FM... ±300kHz... 65 dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
AVR480 - 5.1 CHANNELS OF SOUND. LIMITLESS CONNECTIVITY. With connections for up to four video devices (three with both composite and S-video inputs), front-panel inputs for camcorders, video games and MP3 players, three additional analog and two digital audio inputs, and even a coaxial digital output for a direct connection to digital recorders, the JBL AVR480 is one of the most versatile A/V receivers ever made. And with onboard Dolby Digital and DTS decoding using Cirrus chip technology, plus JBL's innovative high-current design, it's also one of the most capable. From Hollywood's ultimate thrill ride to the most stirring passages of classical music, the AVR480 delivers a heightened, Synthesis-like experience as only JBL can. And it may make you yearn for still more digital stuff to connect.
