DVD 600

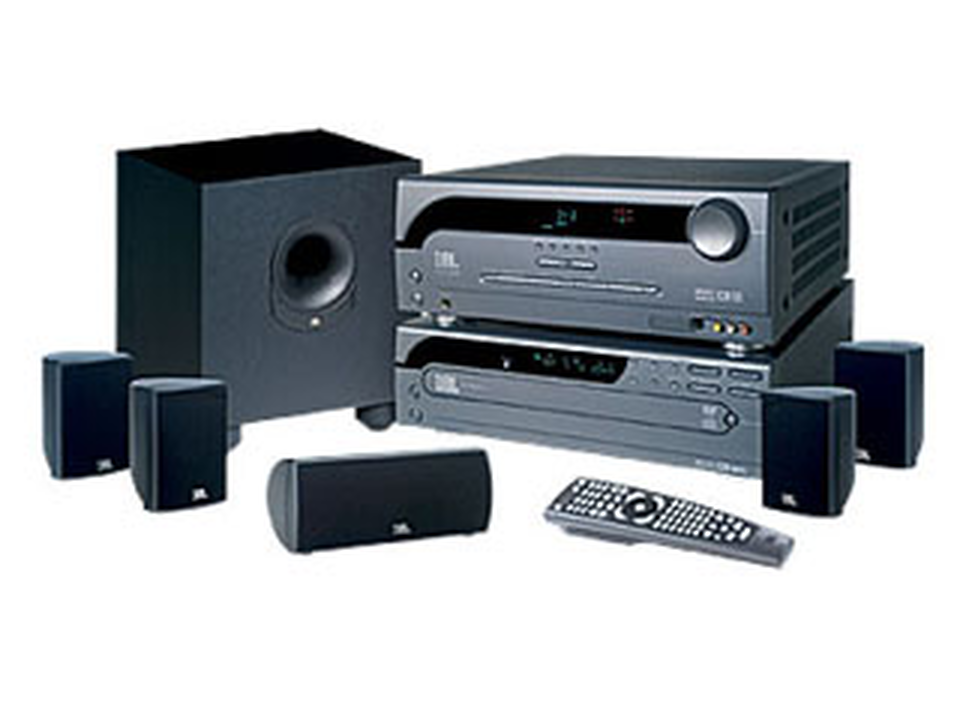

Five-Disc Carousel DVD/CD Changer. Part of the CINEMA PROPACK 600 system.
Vendido desde 2001 hasta 2001
Documentos y descargas
Especificaciones del producto
- Unit Power Consumption
- 25W
- Coaxial Digital Audio Output
- 0.5V p-p/75 ohms
- Frequency Response
- 2Hz – 22kHz, (±0.5dB) (44.1kHz sampling rate)
- Channel Separation
- 90dB
- Total Harmonic Distortion
- MONO – 0.0035%
- Signal-to-Noise Ratio
- 100dB
- Wow and Flutter
- Below measurable limits
- Width
- 17.3 inches (440mm)
- Height
- 5.1 inches (130mm)
- Depth
- 16.9 inches (420mm)
- Weight
- 14.4 lb (7.6kg)
- Video Formats
- NTSC
- Composite Video Output
- 1V p-p/75 ohms, sync, negative polarity
- S-Video Output
- Y/Luminance... 1V p-p/75 ohms, sync, negative polarity C/Chrominance... 0.286V p-p
- Component Video Output
- Y... 1V p-p/75 ohms, sync, negative polarity
- Component Video Output
- Pr... 0.648V p-p/75 ohms
- Component Video Output
- Pb... 0.648V p-p/75 ohms
- Type
- 5-inch (12cm) or 3-inch (8cm) DVD-Video... Region 1, single or dual-sides/layers, linear PCM, Dolby Digital, or DTS CD, CD-RW... Linear PCM Audio Video CD (VCD)... MPEG-1 Video, Linear PCM Audio
- Dynamic Range
- DVD... 105dB (20-bit)
- Dynamic Range
- CD... 100dB
Part of the JBL Cinema ProPack; 600 system, this 5-disc changer can play DVDs, CDs, CD-RWs and Video-CDs. It is equipped with component (Y/Pr/Pb), S- and composite video outputs, a 27MHz/10-Bit video DAC, coaxial digital audio output, and Dolby Digital and DTS pass-through capability. Advanced playability features include programmable play lists up to 25 tracks, repeat of disc, track or A-B phrase, random play, 4-speed smooth scan, 4-speed super-fine slow motion, frame-by-frame advance, parental lock, aspect-ratio selector, and a comprehensive on-screen GUI.
