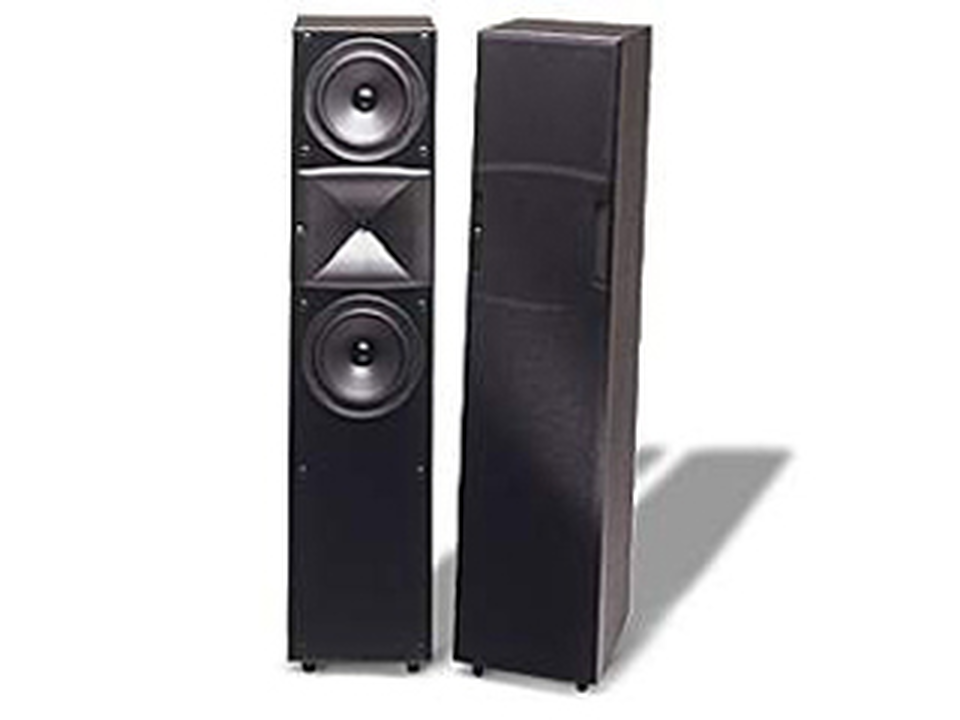

HLS 620

Dual 6-1/2 inch 2-Way Floorstanding (HORN)

Sold from 1997 until 1998

Predecessor Product:	CF 100
Successor Product:	NORTHRIDGE N38

Documents & Downloads

Manuals

Owners Manual (English) 91.22 KB

Other

DIY Troubleshooting (English) 114.94 KB

Product Specifications

General Specifications

Sensitivity (2.83 volts @ 1 meter): 89dB

Nominal Impedance: 8 ohms

High-Frequency Transducer (Tweeter): 10mm mounted in Constant Directivity Horn

Recommended Amplifier Power (RMS): 35 – 200 watts

Frequency Response: 42 – 20kHz (±3dB)

MSRP U.S.: $279.95 each

Dimensions

Dimensions (H x W x D): 35 3/4 x 8 5/16 x 11 7/16 inch

The HLS620 Dual 6-1/2 inch Floorstanding Horn System is Dolby Digital Ready with a JBL Constant Directivity Horn that delivers excellent sound, Co-Injection Molded woofers for tighter, deeper bass, and Video Shielding to allow speakers to be placed near a TV without image distortion. Factory
