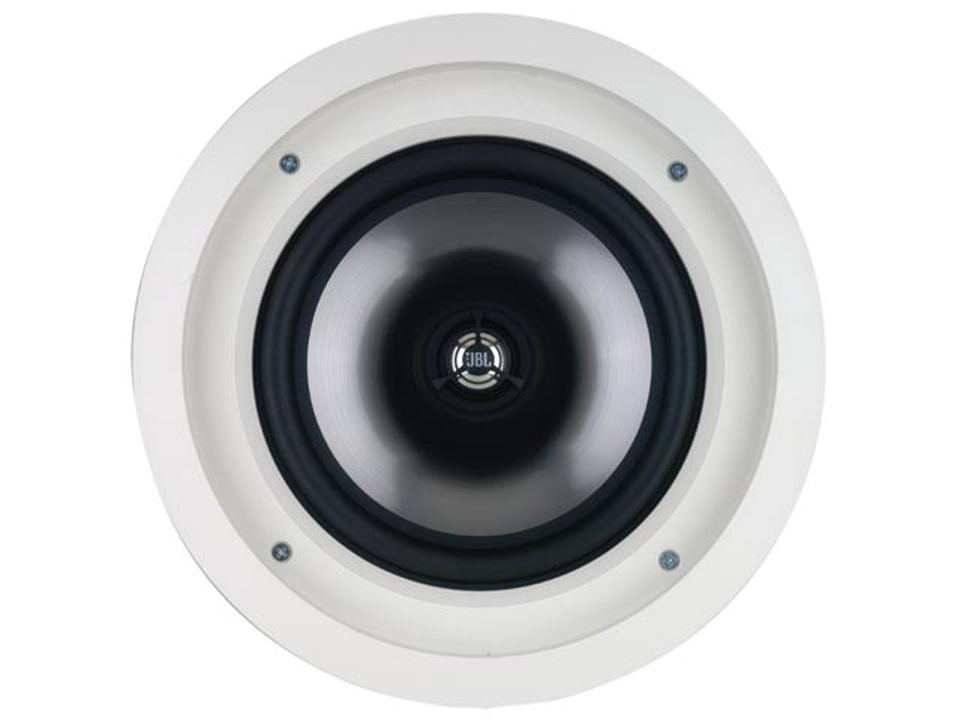

PERFORMANCE INTEGRATOR IS 8C

2-Way Round In-Ceiling Loudspeaker

Sold from 2006 until 2012

Quick Start Guide & Downloads

Manuals

Betjeningsvejledning (Engelsk) 321.89 KB

Other

Product Specifications

Specifikationer

Sensitivity (2.83 volts @ 1 meter): 89dB

Low-Frequency Transducer (Woofer): 8 inch Titanium-laminate cone with rubber surround

High-Frequency Transducer (Tweeter): 1 inch (25mm) Titanium-laminate dome with swivel mount

Recommended Amplifier Power (RMS): 100 Watts

Frequency Response: 32Hz – 20kHz (-10dB)

Crossover Frequency(ies): 2.4kHz

MSRP U.S.: $399.95 per pair

Mål

Plate Size (Diameter): 10-7/8 inch (275mm)

Mounting Depth: 4-1/4 inch (108mm)

Cutout Dimensions: 9-1/2 inch (240mm)

JBL Integrator Series loudspeakers are made up of lightning-fast titanium-dome tweeters with proprietary EOS waveguides, titanium-laminate-cone woofers and outstanding frequency response. Our unique housings and rubber mounts allow full sonic clarity that comes through loud and clear. Many of our advanced technologies are found in this builder-friendly affordable line of in-wall and in-ceiling loudspeakers. Optional rough-in-frames are available for new construction.
