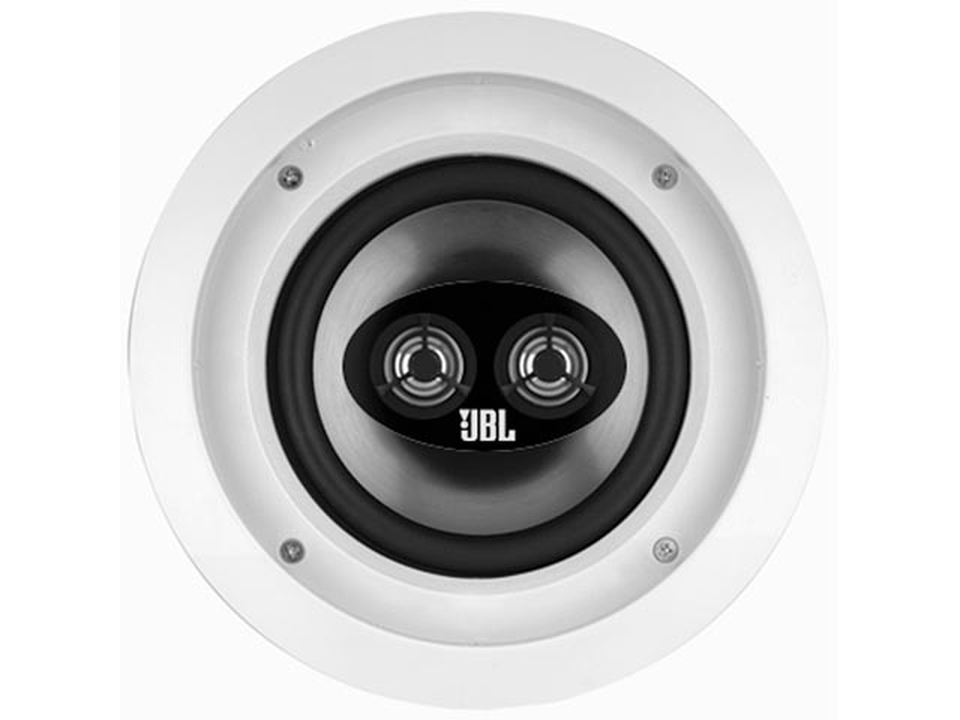

PERFORMANCE INTEGRATOR IS 6DT
JBL Integrator Series loudspeakers are made up of lightning-fast titanium-dome tweeters with proprietary EOS waveguides, titanium-laminate-cone woofers and outstanding frequency response. The IS6DT is a stereo version of the IS6C ceiling speaker, providing a single speaker solution for remote rooms in distributed audio systems or for the rear channels of a home theater system. Optional rough-in-frames are available for new construction.
Product Specifications
General Specifications
| Recommended Amplifier Power (RMS) | 100 Watts total (50WPC) |
|---|---|
| Sensitivity (2.83 volts @ 1 meter) | 88dB |
| Frequency Response | 40Hz – 20kHz (-10dB) |
| Crossover Frequency(ies) | 2.6kHz |
| High-Frequency Transducer (Tweeter) | Dual 3/4 inch titanium-laminate domes with swivel mounts |
| Low-Frequency Transducer (Woofer) | 6-1/2 inch Titanium-laminate cone with rubber surround |
| MSRP U.S. | $199.95 per pair |
Dimension Specifications
| Plate Size (Diameter) | 9-3/16 inch (233mm) |
|---|---|
| Mounting Depth | 4-1/4 inch (108mm) |
| Cutout Dimensions | 7-7/8 inch (200mm) |
