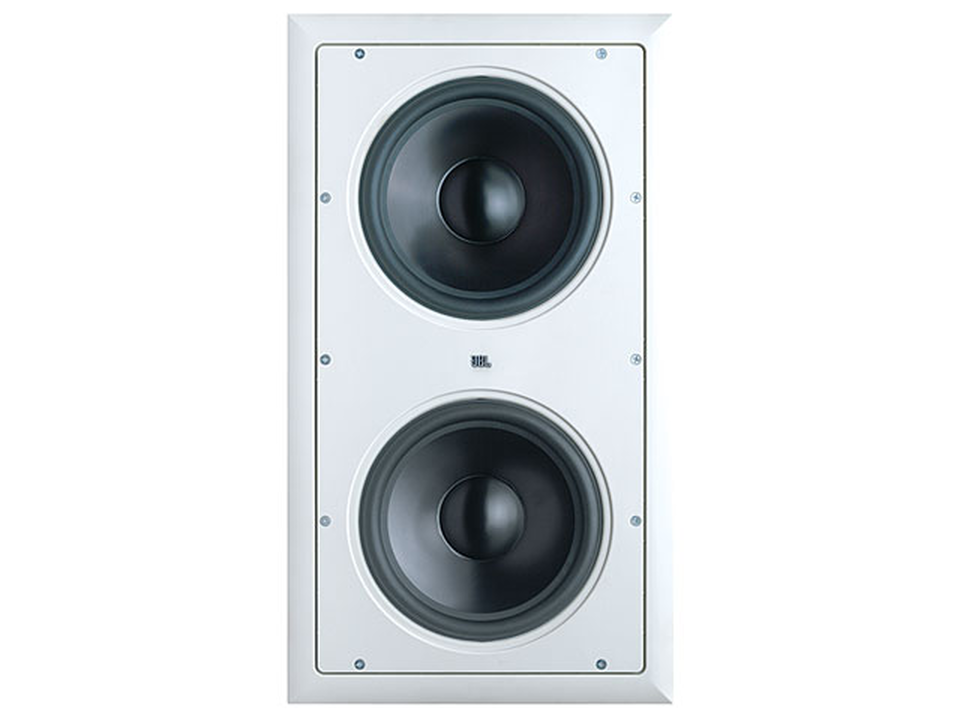

HTI 88

Dual 8 inch (200mm) In-Wall Passive Subwoofer

Sold from 2005 until 2009

Predecessor Product:	AS SUB
Made in:	China

Quick Start Guide & Downloads

Manuals

Betjeningsvejledning (Dansk) 562.94 KB

Other

Product Specifications

Specifikationer

Frequency Response: 30Hz – 100Hz (-6dB)

Recommended Amplifier Power (RMS): 250 Watts per channel

Nominal Impedance: 8 ohms per woofer

Sensitivity (2.83 volts @ 1 meter): 94dB both woofers driven

Crossover Frequency(ies): 100Hz, 2nd order

Low-Frequency Transducer (Woofer): Dual 8 inch polymer-coated aluminum cones w/rubber surrounds

MSRP U.S.: $499.95 per pair

Lydspecifikationer

Maximum Recommended Amplifier Power: 250W

Nominal Impedance: 8 ohms

Frequency Response: 30Hz - 100Hz (-6dB)

Mål

Mounting Cutout Width (mm): 254

Weight (lb): 17

Weight (kg): 7.7

External Height (in): 20-7/16

Mounting Depth (in): 3-7/8

Mounting Depth (mm): 98

External Width (in): 11-7/16

Mounting Cutout Height (in): 18-5/16

External Width (mm): 290

Mounting Cutout Height (mm): 465

External Height (mm): 518

Mounting Cutout Width (in): 10

Plate Size (W x H): 11-7/16 inch x 20-7/16 inch (290mm x 518mm)

Mounting Depth: 3-7/8 inch (98mm)

Weight: 17 lb (7.7kg) (per speaker)

Cutout Dimensions: 10 inch x 18-7/8 inch (254mm x 480mm)

Speaker Specifications

Low-Frequency Transducer: Dual 8" polymer-coated aluminum cones w/ rubber surrounds

Introducing the all-new HTI88 in-wall subwoofer which combines superb sonic performance with outstanding installation flexibility, making it ideal for a wide variety of custom-installation home theater applications. The HTI88 features dual high-power 200mm (8 inch) aluminum-cone woofers with cast-aluminum frames, heavy-duty voice coils with Kapton formers and additional enhancements, to deliver outstanding clarity and definition down to 35Hz. With separate inputs for each subwoofer, the HTI88 can operate in stereo or mono mode, or use two HTI88 subwoofers in your system, one for each channel. Optional back box available for HTI88 subwoofer.
