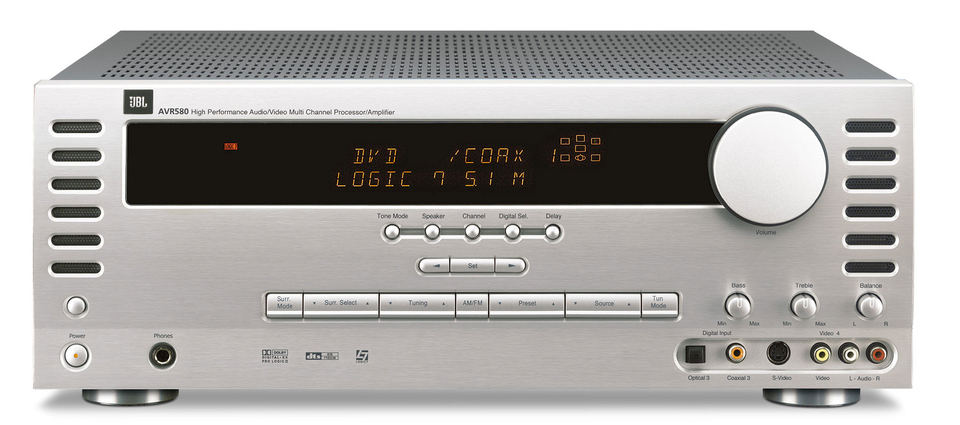

AVR 580
7.1-Channel High-Performance Audio/Video Processor/Amplifier
Documentos y descargas
Especificaciones del producto
- Power Requirements
- AC 220 – 240V/50Hz
- Power Consumption
- 118W idle, 890W maximum (7 channels driven)
- Amplifier Power (RMS)
- FRONT... 100W + 100W (8 ohms/20Hz – 20kHz, 0.08% THD)
- Amplifier Power (RMS)
- FRONT... 150W + 150W (6 ohms/EIAJ)
- Amplifier Power (RMS)
- CENTER... 100W (8 ohms/20Hz – 20kHz, 0.08% THD)
- Amplifier Power (RMS)
- CENTER... 150W (6 ohms/EIAJ)
- Amplifier Power (RMS)
- SIDE & SURROUND... 100W + 100W (8 ohms/20Hz – 20kHz, 0.08% THD)
- Amplifier Power (RMS)
- SIDE & SURROUND... 150W + 150W (6 ohms EIAJ)
- Input Level/Impedance
- 200mV/47k ohms - Linear (High-Level)
- Signal-to-Noise Ratio
- 95dB (IHF-A)
- Surround System Adjacent Channel Separation:
- Analog Decoding (Dolby Pro Logic, etc.)
- 40dB
- Dolby Digital
- 55dB
- DTS
- 55dB
- Frequency Response
- 10Hz – 100kHz (+0/-3dB @ 1 watt)
- High Instantaneous Current Capability (HCC)
- ± 35 Amps
- Transient Intermodulation Distortion (TIM)
- Unmeasurable
- Rise Time
- 16µsec
- Slew Rate
- 40V µsec (Without input anti-slewing and output isolation networks)
- Weight
- 18.1kg (40 lb)
- Dimensions (H x W x D)
- 168mm x 440mm x 435mm (6.6 inch x 17.3 inch x 17.1 inch)
- Video Formats
- PAL/NTSC
- Input Level/Impedance
- 1Vp-p/75 ohms
- Output Level/Impedance
- 1V/75 ohms
- Video Frequency Response:
- Composite and S-Video
- 10Hz – 8Mhz (-3dB)
- Component Video
- 10Hz – 35Mhz (-3dB)
- Frequency Range
- AM... 522 – 1620kHz
- Frequency Range
- FM... 87.5 – 108.0MHz
- China, Singapore
- FM... 0.05MHz
- Korea
- FM... 0.1MHz
- Signal-to-Noise Ratio
- AM... 45dB
- Usable Sensitivity
- AM... Loop... 500µV
- Usable Sensitivity
- FM... IHF 1.3µV/13.2dBf
- Distortion
- AM... 1kHz, 50% Mod 0.8%
- Signal-to-Noise Ratio
- FM... 70/65 dBA (DIN, 60 dBµV) (Mono/Stereo)
- Distortion (Mono/Stereo)
- FM... 0.15/0.3%
- Selectivity
- AM... ± 9kHz, 30dB
- Stereo Separation
- FM... 35dB @ 1kHz
- Selectivity
- FM... ±300kHz... 65 dB
- Image Rejection
- FM... 80dB
- IF Rejection
- FM... 90dB
AVR580 - MULTICHANNEL, MULTIMODE, MULTIFEATURED. EVEN MULTIROOM. The JBL AVR580 is designed to deliver more of just about everything you could want in an A/V receiver. Start with more channels (the AVR580 offers seven, all high-current-capable). Engineer in more advanced technologies (including Logic 7 and VMAx processing, MP3 decoding, EzSet optimization, and Zone II multiroom source distribution). Add more playback modes (Dolby Digital, Dolby Digital EX, Dolby Pro Logic II, DTS, DTS-ES Discrete and Matrix, DTS Neo:6 and more), not to mention more inputs (including front-panel analog A/V, coaxial and optical digital inputs) and outputs. And, of course, more power (JBL's long-standing hallmark).
