Documentos & Downloads
Especificações de Produto
- Frequency Response
- 35Hz – 20kHz (–6dB)
- Weight
- CENTER... 1.89 lbs (0.86kg)
- Weight
- SATELLITES... 1.1 lbs (0.5kg)
- Weight
- SUBWOOFER... 30 lbs (13.6kg)
- Dimensions (H x W x D)
- CENTER... 3-1/4 inch x 7-5/8 inch x 3-3/4 inch (83mm x 194mm x 95mm)
- Dimensions (H x W x D)
- SATELLITES... 4-3/8 inch x 3-3/16 inch x 3-3/4 inch (111mm x 81mm x 95mm)
- Dimensions (H x W x D)
- SUBWOOFER... 15 inch x 13 inch x 14 inch (381mm x 330mm x 356mm)
- Amplifier Power (RMS)
- 100 Watts
- Subwoofer Transducer
- 8 inch Woofer, bass-reflex enclosure
- Recommended Amplifier Power (RMS)
- 10 – 100 Watts
- Nominal Impedance
- 8 ohms
- Sensitivity (2.83 volts @ 1 meter)
- 86dB
- High-Frequency Transducer (Tweeter)
- .5 inch (13mm) Titanium-laminate dome, video-shielded
- Midrange Transducer
- 3 inch Driver, video-shielded
- Recommended Amplifier Power (RMS)
- 10 – 100 Watts
- Nominal Impedance
- 8 ohms
- Sensitivity (2.83 volts @ 1 meter)
- 86dB
- High-Frequency Transducer (Tweeter)
- .5 inch (13mm) Titanium-laminate dome, video-shielded
- Midrange Transducer
- Dual 3 inch drivers, video-shielded

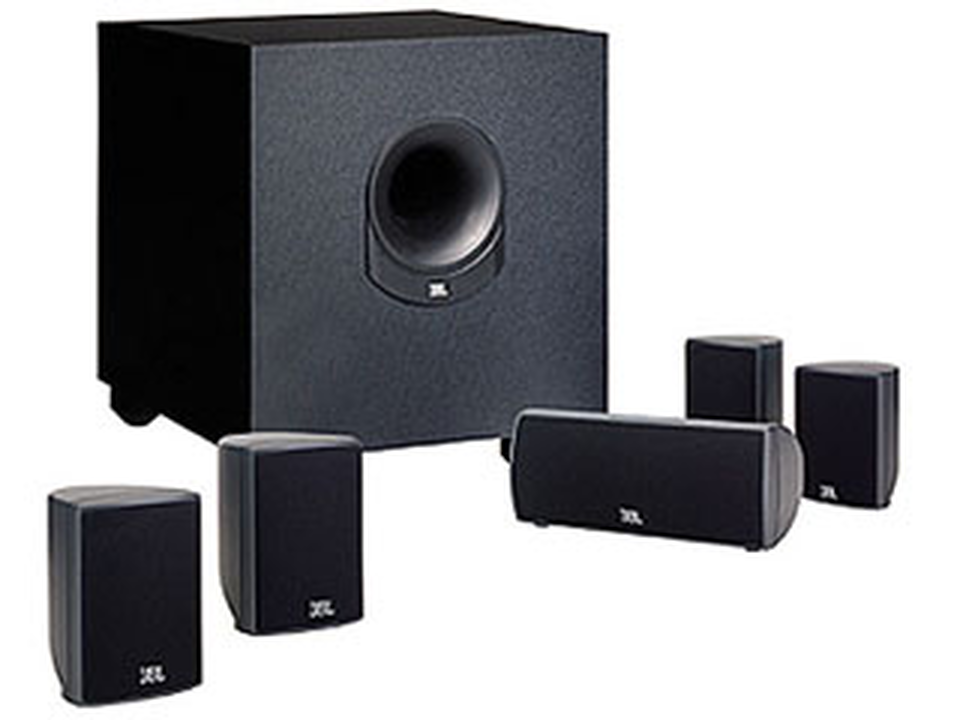

A complete six-piece home theater speaker system. Titanium-laminate tweeters. A 100 watt powered subwoofer. Voice matched dual-woofer center-channel speaker ensures crisp, clear diaogue. Only JBL, the people behind 85% of the surround sound system in the US theaters, could design a home theater system that sounds this good. Comes with all cables and mounting brackets.
