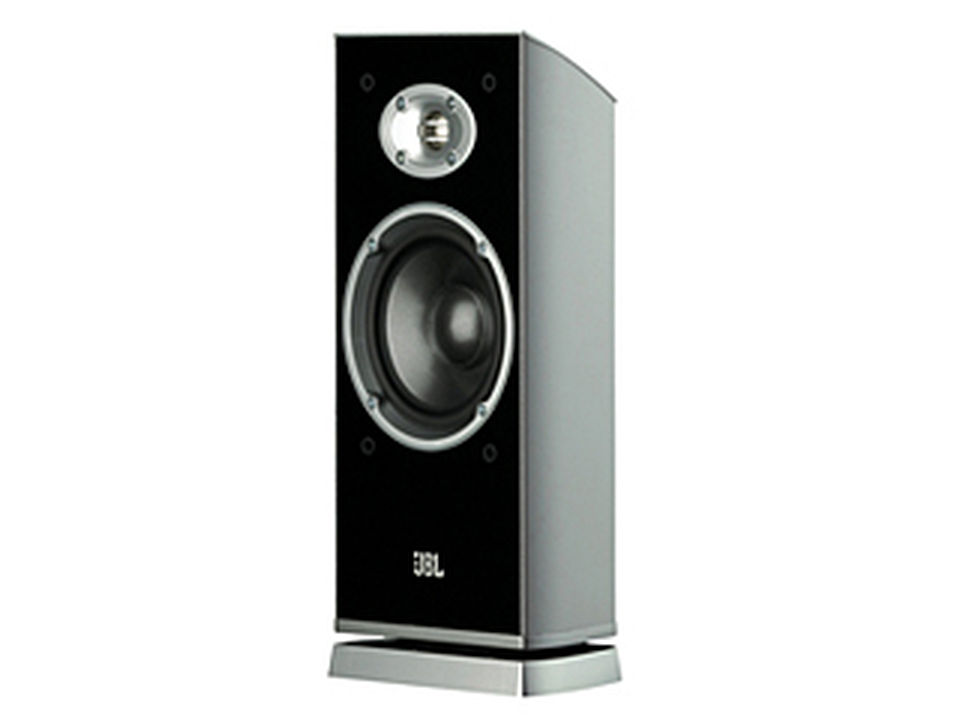

CINEMA SOUND CSB 5
2-Way, 5 inch (130mm) Bookshelf/On-Wall Loudspeaker
Vendido desde 2007 hasta 2011
Producto predecesor: | VENUE MONITOR |
---|---|
Producto sucesor: | CSB6 |
Hecho en: | China |
Documentos y descargas
Especificaciones del producto
- Wall-Mount Capable
- Bracket included
- Weight (lb)
- 4.5 lb
- Weight (kg)
- 2.1kg
- Height (mm)
- 363mm
- Width (mm)
- 155mm
- Width ( in)
- 14-5/16"
- Height (in)
- 6-1/8"
- Frequency Response
- 60Hz – 30kHz (-6dB)
- Recommended Amplifier Power (RMS)
- 125 Watts
- Power Handling (peak)
- 300 watts
- Crossover Frequency(ies)
- 3.2kHz; 12dB/octave
- Low-Frequency Transducer (Woofer)
- 5 inch (130mm) PolyPlas, video-shielded
- High-Frequency Transducer (Tweeter)
- 3/4 inch (19mm) Titanium-laminate dome, video-shielded
- MSRP U.S.
- $399.95 per pair
- Type
- Bookshelf
- Low-Frequency Transducer
- 5" (130mm) Transducer with PolyPlas™ cone, neodymium magnet and HeatScape™ motor structure, video-shielded
- High-Frequency Transducer
- 3/4" (19mm) Titanium-laminate dome, video-shielded
- Maximum Recommended Amplifier Power
- 125
- Frequency Response
- 60Hz – 30kHz (–6dB)
- Nominal Impedance
- 8 Ohms
- Sensitivity (2.83V@1m)
- 88
Designed to perfectly integrate with the latest flat-panel and plasma televisions, the JBL Cinema Sound; CSB5 brings JBL's professional experience to your home. Proprietary JBL technology, such as PolyPlas;-reinforced woofers and titanium-laminate tweeters mounted in Elliptical Oblate Spheroidal; (EOS;) waveguides, means your favorite music and movies sound just as the artist intended. The CSB5 features a silver enclosure with a high-gloss-black front panel and black grille to complement any living environment. Wall-mount brackets are included.
