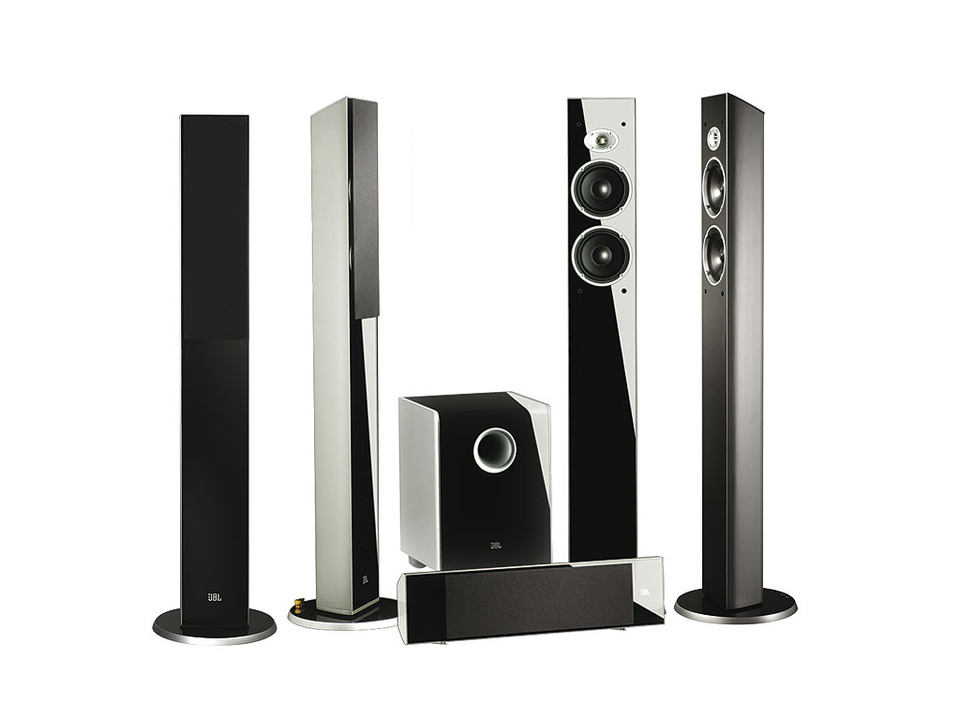

CINEMA SOUND CS 1500
CINEMA SOUND 5.1 SPEAKER PACK (CINEMA SOUND CSB5,CINEMA SOUND CSC55,CINEMA SOUND CSS10,CINEMA SOUND CST55)
Documentos y descargas
Especificaciones del producto
- Weight
- CENTER... 4.5kg (10lb)
- Weight
- SATELLITES... 7.7kg (17 lb)
- Weight
- SUBWOOFER... 19.5kg (3 lb)
- Dimensions (H x W x D)
- CENTER... 159mm x 667mm x 108mm (6-1/4 inch x 26-1/4 inch x 4-1/4 inch)
- Dimensions (H x W x D)
- SATELLITE... 1168mm x 286mm x 286mm
- Dimensions (H x W x D)
- SUBWOOFER... 464mm x 337mm x 406mm (18-1/4 inch x 13-1/4 inch x 16 inch)
- Frequency Response
- 27Hz to low-pass-crossover, setting @ signal source (-6db)
- Amplifier Power (RMS)
- 150W
- Driver
- 250mm (10 inch) PolyPlasTM cone and HeatScapeTM motor structure; magnetically shielded
- Frequency Response
- 55Hz – 30kHz (-6db)
- Recommended Amplifier Power (RMS)
- 150 Watts
- Sensitivity (1 watt @ 1 meter)
- 90dB
- Nominal Impedance
- 8 ohms
- High-Frequency Transducer (Tweeter)
- 19mm (3/4 inch) Titanium-laminate dome, magnetically shielded
- Midrange Transducer
- Dual 130mm (5 inch) transducers with PolyPlas cones, neodymium magnets and HeatScape motor structure; magnetically shielded
- Frequency Response
- 55Hz – 30kHz (-6db)
- Recommended Amplifier Power (RMS)
- 150W
- Sensitivity (1 watt @ 1 meter)
- 90dB
- Nominal Impedance
- 8 ohms
- High-Frequency Transducer (Tweeter)
- 19mm (3/4 inch) Titanium-laminate dome, magnetically shielded
- Midrange Transducer
- Dual 130mm (5 inch) transducers with PolyPlasTM cones, neodymium magnets and HeatScape motor structure; magnetically shielded
