MS 10SD2

MS 10SD2

10 inch Subwoofer (600 watts) Dual 2 ohm

Vendido desde 2011 hasta ahora

Producto predecesor: POWER P1022
Hecho en: Brazil

Documentos y descargas

Especificaciones del producto

Size
10"
MSRP U.S.
$229.95 each
Nominal Impedance
2+2
Frequency Response
40HZ-400Hz (-10dB)
Peak Power
1200
Power Handling (RMS)
600
Power Handling (Peak)
1200
External Diameter (in)
10-12/16
Mounting Cutout Diameter (mm)
228
Mounting Depth (mm)
145
External Diameter (mm)
273
Mounting Cutout Diameter (in)
8-15/16
Mounting Depth (in)
5-11/16

Premium-performance subwoofer with 2-ohm impedance.

Premium-performance subwoofer with 2-ohm impedance. The JBL® MS-10SD2 is a high-performance, high power-handling, dual voice-coil subwoofer designed to create smooth, powerful bass in your car. The subwoofer’s dual 2-ohm voice-coil design, with 1,200 watts peak power handling, allows for a wide variety of connection options. You can use this sub with any amplifier that can deliver appropriate power, such as the JBL MS-A5001 digital signal-processing amplifier. The sub features advanced components that include rigid polypropylene cones, stitched tri-laminate surrounds, vented magnet assemblies and nonmagnetic cast-aluminum frames.

JBL engineers designed the MS-10SD2 premium subwoofer to produce thrilling, robust bass from an amplifier capable of delivering up to 1200 watts of power. The MS-A5001 digital signal-processing amplifier, part of the JBL MS Series, is an ideal power partner for the MS-10SD2.
The MS-10SD2 subwoofer features a rigid polypropylene cone that is lightweight but stiff enough move air effectively without flexing. The result is a low-frequency diaphragm that reduces unwanted mechanical distortion under movements up to its linear-excursion (Xmax) limits.
The stitched tri-laminate surround in the MS-10SD2 subwoofer features dual stitch lines for a robust connection to the cone. The material is uniquely able to control the cone’s movement and dampen any vibrations that originate in the frame and mounting surface from reaching the cone. The result is precise control and excellent bass at low or high volumes.
The cast-aluminum frame on the MS-10SD2 subwoofer ensures a rigid chassis for the sub’s moving parts. Since cast aluminum is nonmagnetic, the sub’s magnetism is focused on the voice coils to control the cone’s rapid, piston-like movement and reproduce even the most complex bass sounds faithfully. Cast aluminum also dissipates heat efficiently and hence provides reliable power handling.
All MS-10SD2 subwoofers include a vented magnet assembly to let the voice coils breathe. This feature reduces the probability of power compression in systems playing loudly over a long period. It means an efficient use of amplifier power so that all the power delivered to the subwoofer is directed to the voice coil and not wasted as residual heat.
Dual voice coils in MS-10SD2 subwoofers offer the best range of wiring and system configuration options to optimize the amplifier’s output load. When you’re using multiple subwoofers, the dual voice-coil configurations allow dual, triple and even quad subwoofer designs to optimize the amplifier load for maximum power output.
MS Series subwoofers provide amazing bass from modest enclosure volumes. For this 10-inch (250-millimeter) sub, we recommend a respectable 0.78 cubic feet (about 22,100 cubic centimeters) sealed enclosure or 1.13 cubic feet (about 32,100 cubic centimeters) vented enclosure. Since vented enclosures provide greater output than sealed enclosures given the same power, the vented-enclosure option will work with smaller amplifiers.
The MS-10SD2 subwoofer features spring-loaded connection terminals for both voice coils, ensuring ease of connection for a variety of wire-gauge sizes. The subwoofer’s push terminal also makes easy work of connecting series or parallel voice coils, or wiring to other subwoofers.
The JBL MS-A5001 digital signal-processing mono amplifier is an ideal companion to one or more subwoofers. Add an MS-8 digital integration processor to the sound system, and listen to the speakers come alive, blend seamlessly with the sub and provide an in-vehicle sound experience that’ll rival great home audio experiences. JBL engineering has once again delivered excellence in an MS Series product.

Imágenes y vídeos

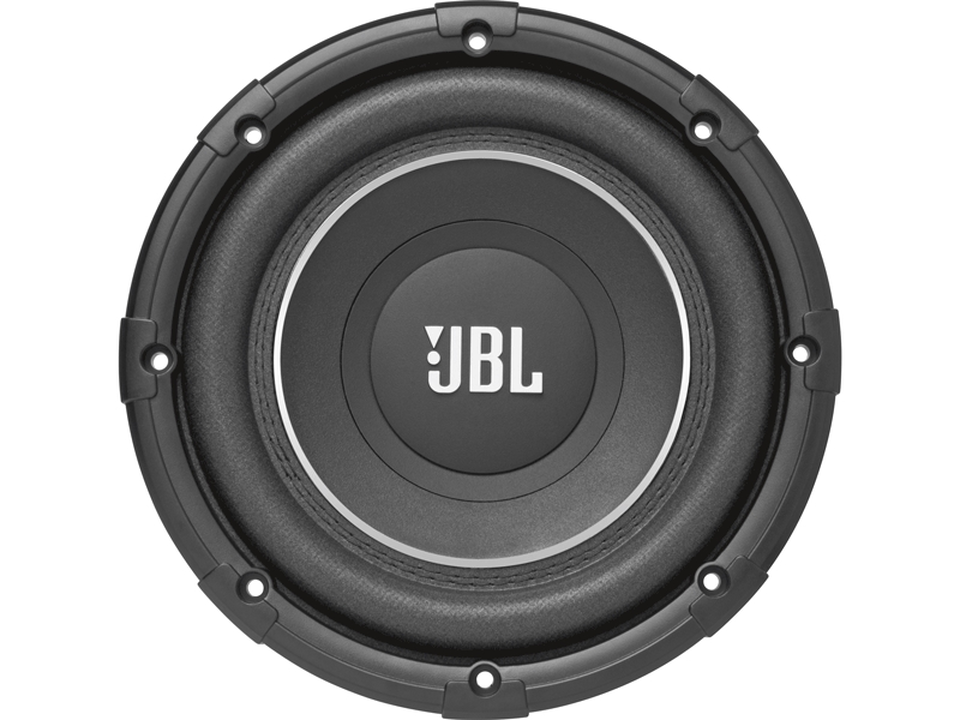

MS 10SD2 - Black - 10 inch Subwoofer (600 watts) Dual 2 ohm - Hero
  • MS 10SD2 - Black - 10 inch Subwoofer (600 watts) Dual 2 ohm - Hero
  • MS 10SD2 - Black - 10 inch Subwoofer (600 watts) Dual 2 ohm - Left
